Reflow Soldering PCB Assembly

Reflow Soldering PCB Assembly is a critical process in the manufacturing of Printed Circuit Board Assemblies (PCBAs). It is a method used to join the surface mount components to the PCB using solder paste. Reflow soldering involves heating the PCB assembly to a specific temperature, melting the solder paste and creating a permanent joint between the component and the PCB. The process is highly precise, allowing for the creation of high-quality and reliable PCBAs that are used in a wide range of electronic devices. Reflow soldering is a key element in the manufacturing process of PCBAs, ensuring that the final product is of high quality, free from defects, and functions as intended.

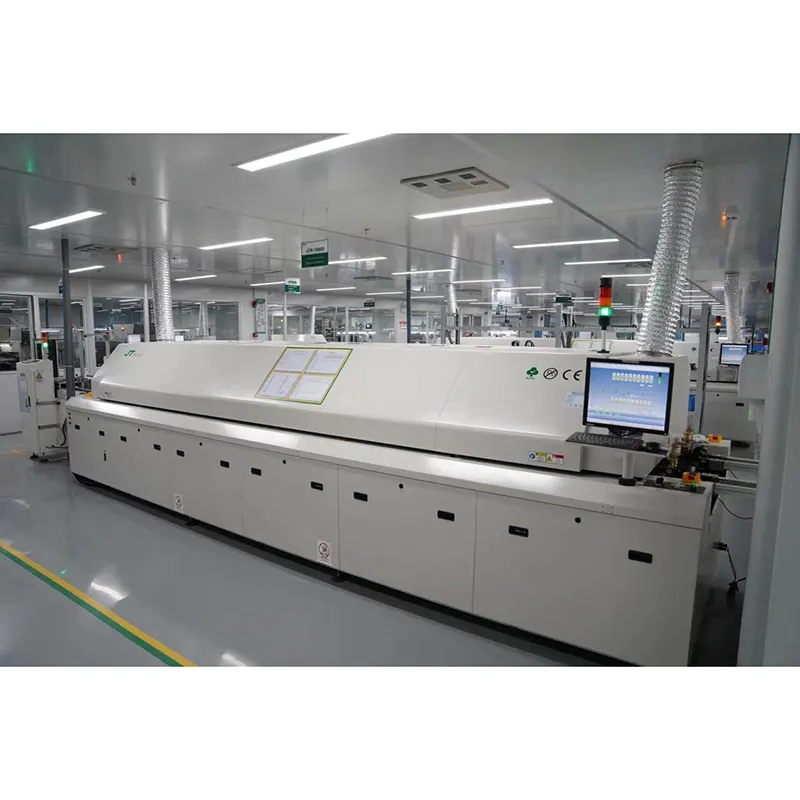

Reflow Soldering PCB Assembly is a key process in PCB assembly, which involves the soldering of electronic components onto a printed circuit board (PCB) using a reflow oven or a similar heating device. It is a widely used method for attaching surface-mount components to PCBs.

Reflow soldering offers several advantages in PCB assembly:

Efficiency and Precision: Reflow soldering enables the simultaneous soldering of multiple components, making it a highly efficient process. It also ensures precise alignment of components due to the surface tension of the molten solder.

High-Quality Solder Joints: The controlled heating and cooling process of reflow soldering result in reliable and consistent solder joints. The molten solder provides good electrical conductivity and mechanical strength.

Compatibility with Small Components: Reflow soldering is well-suited for surface-mount components, including small and intricate parts, due to its precise placement and controlled soldering process.

Lead-Free Soldering: Reflow soldering can accommodate lead-free solder alloys, which are commonly used to comply with environmental regulations and ensure product safety.
